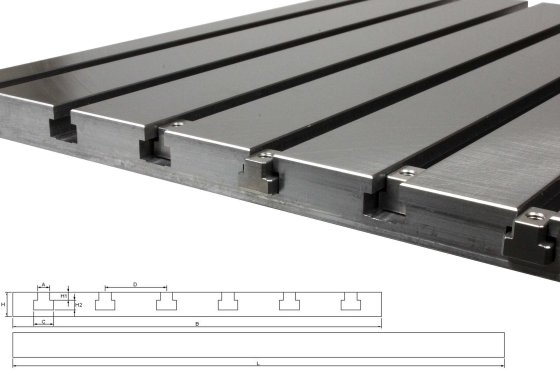

Steel T-slot plate 9030 (finely milled)

Item number: A1719

  • measure: 900 x 300 mm
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.01 mm /200 mm

Category: Steel T-slot plates (finely milled)

Size

$ 2,150.00

Final price*, plus shipping (box)

Shipping time: 11 - 14 workdays


secure shopping
The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.

Technical Data:
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.01 mm /200 mm
  • L= 900 mm
  • B= 300 mm
  • H= ca. 20 mm
  • H1= 6.5 mm
  • H2= 8 mm
  • D= 50 mm
  • A= 10 mm
  • C= 16 mm

Shipping weight: 103,62 lbs
Product weight: 92,59 lbs
