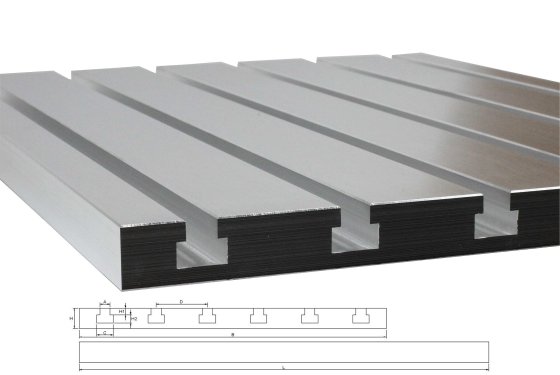

T-slot plate 2020

Item number: A1589
  • measure: 7.874" x 7.874"
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.01 mm /200 mm
$ 45.00

Final price*, plus shipping

Shipping time: 11 - 12 workdays

Menge
(Stck.)
//
secure shopping

Description

The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.

Technical Data:
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.01 mm /200 mm
  • L= 200 mm
  • B= 200 mm
  • H= 20 mm
  • H1= 6.5 mm
  • H2= 8 mm
  • D= 50 mm
  • A= 10 mm
  • C= 16 mm

Item number:

A1589
Shipping weight: 6,62 lbs
Product weight: 4,41 lbs
