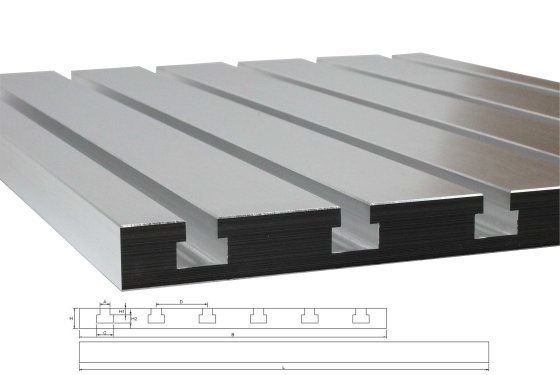

T-slot plate 7040

Item number: A1681

  • measure: 700 x 400 mm
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.01 mm /200 mm

Category: Cast aluminum T-slot plates (cm)

Size

$ 989.00

Final price*, plus shipping

Shipping time: 11 - 14 workdays


secure shopping
The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.

Technical Data:
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.01 mm /200 mm
  • L= 700 mm
  • B= 400 mm
  • H= 20 mm
  • H1= 6.5 mm
  • H2= 8 mm
  • D= 50 mm
  • A= 10 mm
  • C= 16 mm

Shipping weight: 46,30 lbs
Product weight: 33,07 lbs
