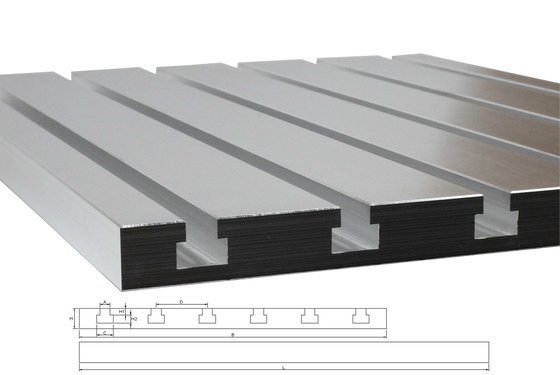

Cast aluminium T-slot plate 10" x 10"

Item number: A1738
  • measure:10" x10"
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.004" /8"
$ 67.00

Final price*, plus shipping

Shipping time: 1 - 2 workdays

Menge
(Stck.)
//
secure shopping

Description

The T-slot plate is supplied with a smooth, closed bottom; that allows you to suck the plate on a vacuum table. For mounting on a machine table / frame holes will be drilled at a appropriate position. You can do this by yourself or take advantage of our service.

Technical Data:
  • made for T-Slot nuts according to DIN508
  • Tolerance/Precision: +/- 0.004"/8"
  • L= 10"
  • B= 10"
  • H= 0.787"
  • H1= 0.276"
  • H2= 0.315"
  • D= 2"
  • A= 0.406"
  • C= 0.669"

Item number:

A1738
Shipping weight: 10,14 lbs
Product weight: 7,28 lbs
