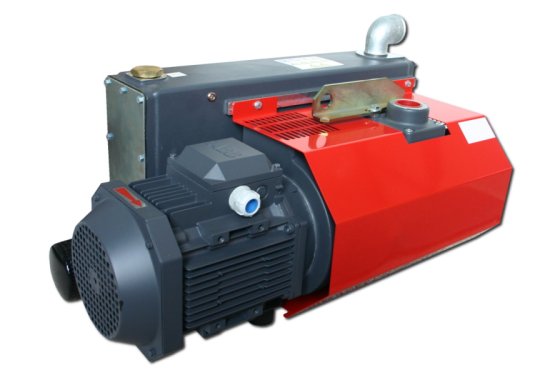

Vacuum pump DSN65

Item number: A1319

New now with switch control box and 4 meters of connecting cable

  • VERY quiet!
  • Nominal displacement/volume flow 50Hz m3/h -> 63
  • Ultimate Pressure hPa (mbar) -> 0,5 (99,5 % Vacuum!)
  • Noise level (DIN 45635)* 50Hz dB(A) -> 65

Category: Oil-lubricated, vane-type rotating pumps

$ 5,068.00

Final price*, plus shipping (spedition)

secure shopping
Rotary vane vacuum pumps operate oil-free with self lubricating vanes made of special carbon.

They are ideal pumps for all in-dustrial applications.

The advantages of the vacuum generator are:
  • Economical and environmentally friendly
    DSN65 vacuum pump stand out due to their low energy consumption. It is quiet and environmentally friendly as a result of oil-free compression.
  • Compact design
    The motor is directly flange-mounted to the pump.
  • Low maintenance
    Robust design, lifetime lubricated bearings and surface cooled motor guarantee a long service life for the pump.

New: inclu. Switching Device with engine-protection for comfortable and save control over your vacuum pump!

Development of noise and heat at the control area of the CNC-Unit location
is always bothersome. Basically its thought best to position the vacuum pump as
far as possible, from the control area. This is very easy to accomplish when using
the switching device and since our vacuum pumps are already equipped with the
switching device as standard.

Just install the switching device at the control area( either standing it upwards, or using
two screws to screw it tightly to a suitable subsurface) and securely lay the lines and
hoses toward the vacuum pump. At this part in time it should be verified that nothing is
left in the way to stumble on and that there be suficient space between parts in the whole
area. The standard issued cable length amounts up to 4m.

Now the switching device can be plugged into a regular outlet and the device is then
automatically operational .

Technical Details
  • Nominal displacement/volume flow 50Hz m3/h -> 63
  • Ultimate Pressure hPa (mbar) -> 0,5 (99,5% Vacuum)
  • Nominal motor rating 50Hz kW -> 1,5
  • Nominal motor speed 50Hz min-1 -> 1450
  • Noise level (DIN 45635)* 50Hz dB(A) -> 65
  • Weight approx. kg -> 70
    *)Sound level (DIN 45635)

Shipping weight: 198,42 lbs
Product weight: 154,32 lbs
